Align™ 7478

Part of the Align Collection

Designed by Matthew Weatherly

An attractive double-width cabinet that takes full advantage of limited space. Great for additional storage or as a compact home entertainment system. Select from two base styles, media (M) or console (C).

Fog Grey | Media Base

For pricing and availability, contact a BDI retailer.

Where form and function align.

Sleek and streamlined, this sexy console collection offers multiple cabinet sizes and base options, providing the versatility to serve as full-featured media cabinets or impressive storage credenzas.

Performance Features

Engineered from the inside out. BDI furniture is designed to seamlessly integrate technology into the way that we live. Innovative performance features abound, simplifying your initial setup, maximizing your ongoing enjoyment, and protecting your investment over the life of your system.

Whether placed flat against the wall or tucked into a corner, this slender design makes maximum use of a minimal footprint.

Two Base Styles

Select from two base options: a low-profile media base (M) with hidden wheels and adjustable levelers or an elegant console base (C).

Louvered Doors

Louvered doors conceal a host of storage for your gear—keeping electronics neatly out of sight—while allowing for clear sound dispersal and remote control accessibility.

Access and Organization

Removable rear lower panels provide easy access to gaming and home theater component connections, while built-in cable management helps to keep things neat and tidy.

Collection

Align

Sleek and streamlined, this sexy console collection offers multiple cabinet and base options, providing the versatility to serve as full-featured media cabinets or impressive storage credenzas.

EXPLORE THE FULL COLLECTION

Align 7478 Media + Storage Console

Features

  • Soundbar Platform
  • Adjustable Shelves
  • Rear Access Panels
  • Flow-Through Ventilation
  • Cable Management
  • Two Base Options
  • Hidden Wheels (Media Base)

Materials

  • Powder Coated Steel
  • Solid Wood Louvers

Dimensions

25H x 50W x 18D in
63H x 127W x 46D cm

Align 7478
Align 7473
Align 7477
Type Media + Storage Console Media + Storage Console Media + Storage Console
Height 25 in 19 in 25 in
Width 50 in 81 in 66 in
Depth 18 in 18 in 18 in
Align 7478
Align 7473
Align 7477
Type Media + Storage Console Media + Storage Console Media + Storage Console
Height 63 cm 49 cm 63 cm
Width 127 cm 206 cm 167 cm
Depth 46 cm 46 cm 46 cm

You Might Also Like

Local Retailers

21 Retailers Near You

Align 7478 Specifications

Maximum TV Size
up to 60" TV

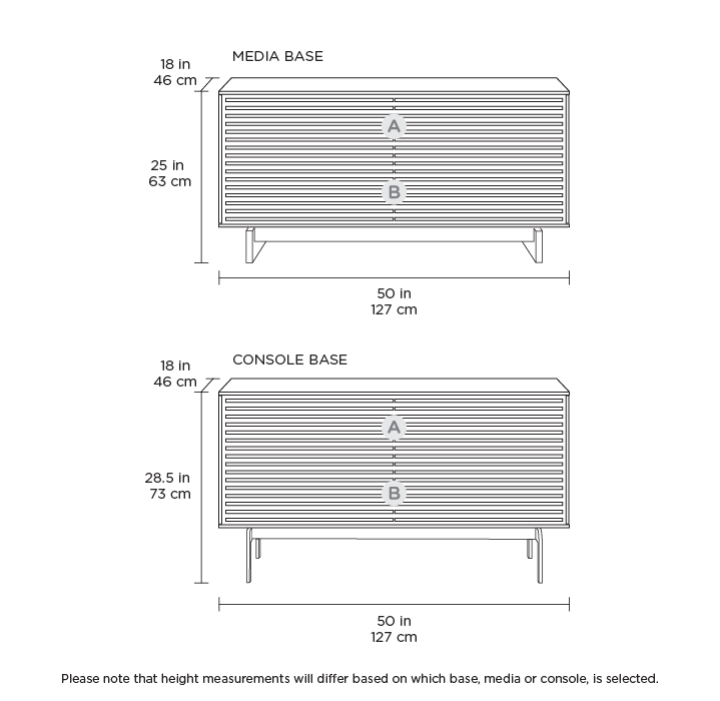

Overall Dimensions
25H x 50W x 18D in

Dimensions (with Media Base)
25H x 50 x 18 in | 63H x 127 x 46 cm

Dimensions (with Console Base)
28.5H x 50 x 18 in | 73H x 127 x 46 cm

  1. Top Speaker/Component Compartment
    Shelf Capacity 50 lbs
    Component Use (x2) 8.25H x 23.5 x 14.5 in | 21H x 60 x 36.5 cm
    Speaker Use 8.25H x 47 x 7.25 in | 21H x 120 x 18.5 cm
  2. Lower Compartments
    Interior Dimensions 8.25H x 23.5W x 16D in
    Shelf Capacity 50 lbs
Component Capacity
4-6
Top Shelf Capacity
125 lbs
Weight
112.5 lbs
Packaged Dimensions
23H x 53W x 22D in
Packaged Weight
135 lbs
Maximum TV Size
up to 60" TV
Overall Dimensions
63H x 127W x 46D cm

Dimensions (with Media Base)
25H x 50 x 18 in | 63H x 127 x 46 cm

Dimensions (with Console Base)
28.5H x 50 x 18 in | 73H x 127 x 46 cm

  1. Top Speaker/Component Compartment
    Shelf Capacity 23 kg
  2. Lower Compartments
    Interior Dimensions 21H x 60W x 40.5D cm
    Shelf Capacity 23 kg
Component Capacity
4-6
Top Shelf Capacity
57 kg
Weight
51 kg
Packaged Dimensions
59H x 135W x 56D cm
Packaged Weight
62 kg

Furniture dimensions, specifications, materials, finishes and availability are subject to change. Due to variations in computer monitors, the actual finish may appear differently online. Visit your local BDI retailer to view actual finish samples.

Finishes

Due to variations in computer monitors, actual finish may appear differently online. Visit your local BDI retailer to view actual finish samples.

BDI’s wood finishes feature natural hardwood solids and veneers. Wood is a product of nature and - unlike man-made materials that can be manufactured to strict and consistent specifications - has natural imperfections that are part of its appeal and character. Every piece of wood differs from every other, even when coming from the very same tree. As such, variation in grain, texture and tone should be expected from one panel or piece of furniture to the next. It is this variation that separates natural wood from an engineered product, and variations should be expected as part of the beauty of a real wood finish.

BDI's Natural Walnut finish is clear-coated and does not include any stains or color modifiers whatsoever. This natural finish will typically change in appearance over time, usually starting out as a medium tone and then becoming darker, more amber over time with exposure to ambient natural light. It can also fade and get much lighter with exposure to direct sunlight. To avoid discolored spots in the wood tone, periodically move any items that are resting on the finished surfaces including lamps, vases, TVs, etc.
